一、主要技術規格
Main Tech Parameters
原材料(鋼帶)材質 Steel strip material |
熱軋或冷軋低碳鋼 Hot rolling or cold rolling low carbon steel |
成品要求 FinishedProducts Requirements |
圓管round pipeФ63.5-Ф127mm,thickness 壁厚:1.5-5.0mm 方管square pipe50X50-100X100mm, thickness壁厚:1.5-4.2mm |
機列要求Machine column requirements |
機列形式:分體式 Form:Split |
布置方式:根據客戶的需求 arrangement form: according to the customer's requirements |
|
機組生產速度 Unit production speed |
0~60m/min |

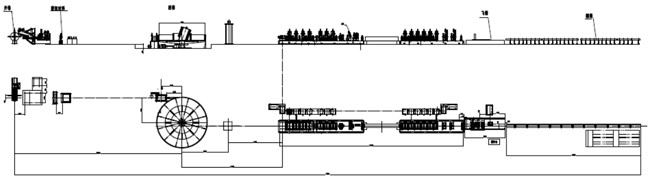

二、工藝流程
Working Flow
開卷→剪切對焊→螺旋活套→校平→軋制成型→高頻焊接→刮刀→冷卻 →定徑→矯直→飛鋸切料→下料臺
hanging material→feeding→uncoiler→shear and butt welder→horizontal spiral accumulator→forming→high frequency welding→scraper→cooling→sizing→straightener→computer control flying saw→lay out table
三、焊管線主要構成規格
Mainly Composed Specifications Of Pipe Line
1. 開卷機
Un-coiler
結構形式 Type |
單頭液壓開卷機Single headPneumatic tensioning un-coiler |
適用鋼帶內徑 Shrinking and expanding range of I.D |
鋼卷內徑漲縮范圍φ460-φ520mm(根據客戶需求) Φ460-Φ520(according to the customer’s request) |
鋼帶外徑 steel strip O.D |
≤φ1800mm |
鋼帶寬度 Steel strip width |
200~400mm |
鋼帶卷重 Steel strip coil weight |
≤10噸Ton |
制動形式 Brake from |
氣動、強弱制動Pneumatic brake |
轉動形式 rotation form |
人工推動平臺±180°Manual push platform±180° |
2.七輥整平機Seven roller straightening machine
結構形式Structure form |
由動力部分、主機部分組成,含鏟板裝置。Consist of power parts, host, shovel board device. |
動力部分組成Power components |
由機座減速機、電機、聯軸器、離合器萬向接、齒輪、分配 By the stand reducer, motor, coupling, clutch, universal joint, gear, distribution box, etc |
主機部分組成 host part |
由機座、機架、二根夾送輥、七根矯平輥、滑動軸座、夾送牽引輥液壓提升壓下機構等 By the frame, frame, two root pinch roll, seven root leveling roll, sliding shaft seat, pinch traction roller hydraulic screwdown, etc |
電機功率 motor power |
7.5Kw,變頻調速Frequency conversion control speed motor |
3. 480手動剪切對焊機或全自動焊
Manual Shear And Butt Welder Or Fully Automatic Welder
作用Function |
切除鋼帶頭尾的缺陷部分以及帶卷中間的缺陷部分 在對焊前切頭切尾,使對焊接頭平直對正,利于對焊 Removal of the defective portion of the strip head and tail and coil center, Cutting head and tail before butt welding, make the butt-welded head straight on to be good for welding |
結構形式 Structure form |
液壓剪+手動(自動)焊接+手動(自動)對縫 Hydraulic shearing and manual alignment and manual welding or Fully Automatic welder and alignment |
剪切厚度 Applicable steel strip thickness |
≦5.0mm |
最大剪切寬度 Maximum steel strip width |
420mm |
4. 盤式螺旋活套
HorizontalSpiralAccumulator
活套原理 Principle |
由外套引入,中心出料 Introduced by theouter accumulator, center discharge |
活套直徑 Diameter |
Ф5.5米meter |
鋼帶寬度 Steel strip width |
200~400mm |
鋼帶厚度 Steel strip thickness |
≦5.0mm |
充料速度 Feeding speed |
≥120m/min |
送料電機功率 Feeding motor power |
15KW |
活套主體功率 Accumulator unit motor power |
30KW |

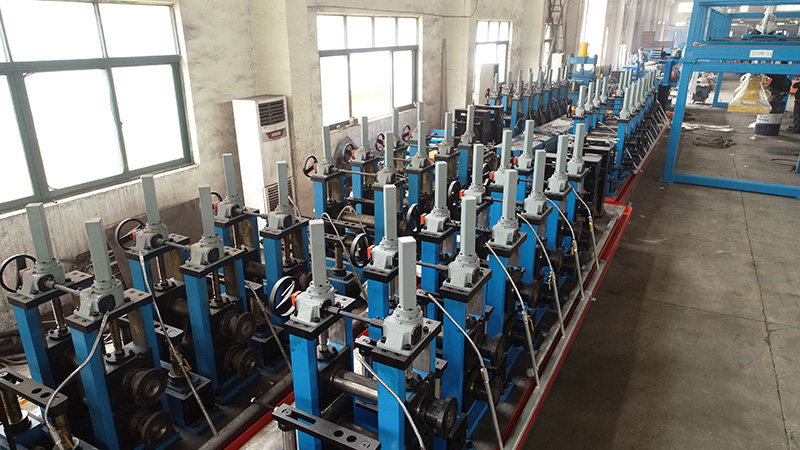

5. 成型定徑機組
Forming And Sizing Machine
進料裝置 Feeding device |
導向立輥 Guide vertical roll |
矯平輥后兩對導向立輥,通過手動調節對中開合調整 After leveling roll two pairs of vertical guide rollers, regulation of the opening and closing by manual adjustment |
||||
矯平輥 Leveling roller |
采用7輥矯平裝置,使鋼帶平穩進入成型機組,矯平輥為無動力輥,下輥固定,上輥通過首輪絲桿上下調整 Adopt7-roller leveling device, so that a smooth strip into the forming units, leveling roll is a non-powered roller, lower rolleris fixed, upper roller can be adjustedthrough the first round screw up and down |
|||||
成型機架 Forming bracket |
成型原理 Principle |
本機組采用底線水平輥式成型原理,軋輥采用雙半徑孔型 This unit uses the baseline level roll-forming principle,Roller adopts double radius of groove |
||||
成型要求 forming requirements |
圓管round pipeФ63.5-Ф127mm,thickness 壁厚:1.5-5.0mm 方管square pipe50X50-100X100mm, thickness壁厚:1.5-4.2mm |
|||||
成型機架規格 Forming bracket specifications |
輥架 Roller bracket |
數量 Quantity |
輥架軸徑 Shaft diameter of roller bracket |
輥軸材料 Material of roller bracket |
軸熱處理 Heat treatment |
|
水平輥架 Horizontal Roller bracket |
7 |
Φ110mm |
42Crmo |
調質高頻淬火 HF quenching |
||
立輥架 Vertical Roller bracket |
7 |
Φ70mm |
40Cr |
調質高頻淬火 HF quenching |
||
成型機架機構要求 Forming bracketinstitutions requirements |
在每個開口成型水平機架上輥方軸承頂部都設由過載保護裝置,當遇到過載時該墊有緩沖,以保護水平輥和傳動裝置 On each opening forming horizontal rack roller bearings are located at the top side by the overload protection device, the pad has a buffer when faced with overload, in order to protect the horizontal roller and transmission device |
|||||
水平輥架為龍門式結構,其中:開口成型4機架;閉口成型3機架。水平輥模具采用隔套直接固定,保證機組精度 Horizontal rollerbracket is gantry structure, including: open molding4 brackets; Silent molding 3brackets. Horizontal rollermold adopt spacer fixed directly, ensure its accuracy |
||||||
立輥架為滑槽式結構,其中:雙立輥導向,手動調節同時開合和對中;立輥滑塊為分體式,用螺釘調節松緊; Vertical roller is sliding-type structure, including: double vertical roller Guide,manually adjust the opening and closing at the same time vertical roll slideris the split, with screw to adjust tightness |
||||||
換輥方式:側拉式 Roller changing way:Side pull |
||||||
機架潤滑:水平輥架后端排架使用油槍油脂潤滑,配加油嘴 BracketLubrication:horizontal rollerbracket back-end bent use grease lubrication oil gun, with refueling nozzle |
3.5 焊接設備(機械部分)
Welding Unit
焊縫導向機架 Weld guide bracket |
(1套)導向輥由上下兩個輥?zhàn)咏M成,中間裝有導向刀片,焊縫角度通過螺桿調節 (1 set)Guide roller is composed of upper and lower rollers, the middle is equipped with guide blade,weld angle adjusted through the screw |
焊接擠壓輥機架 Welding extrusion rollerbracket |
(1套)三輥式,壓輥加壓將熔融的金屬擠壓并焊合在一起 (1 set)Three roller, roller pressure squeezing molten metal and welded together |
側擠壓輥軸裝輥直徑 Roller diameter ofThe lateral extrusion roller |
Φ70mm |
外毛刺去除裝置 Outer burr removal device |
(1架)裝有可交替使用的前后刀具座,手輪調整刀具的高度和橫向位置并加裝有快速進退刀裝置 (1 set)Before and after the tool holder can be used interchangeably,the handwheel adjustthe cutting tool height and horizontal position and equipped with a fast cutting device |
下支承部分 lower support part |
硬木板支承,高度可調;可保證焊縫切削光滑平整 Hard wood supports, height is adjustable; can ensure the seam cutting is smooth |
磨光輥機架 Polishing roller bracket |
(1架)立輥式,手動調節開合和對中 (1 set)Vertical roller, manually adjust the opening and closing |
冷卻裝置型式 Form of cooling device |
噴淋和溢池聯合式 Spray pool and overflow pool |
3.6 定徑機架
Sizing Bracket
定徑要求 Sizing requirement |
圓管round pipeФ63.5-Ф127mm,thickness 壁厚:1.5-5.0mm 方管square pipe50X50-100X100mm, thickness壁厚:1.5-4.2mm |
|||||
定徑機架規格 Sizing bracket specifications |
輥架 Roller bracket |
數量 Quantity |
輥架軸徑 Shaft diameter of roller bracket |
輥軸材料 Material of roller bracket |
軸熱處理 Heat treatment |
|
水平輥架 Horizontal Roller bracket |
6 |
Φ110mm |
42Crmo |
調質高頻淬火 HF quenching |
||
立輥架 Vertical Roller bracket |
6 |
Φ70mm |
40Cr |
調質高頻淬火 HF quenching |
||
水平輥模具采用隔套直接固定,保證機組精度 Horizontal rollermold adopt spacer fixed directly, ensure its accuracy |
||||||
定徑機架機構要求 Sizing bracketinstitutions requirements |
換輥方式:側拉式 Roller changing way:Side pull |
|||||
上輥調整:左右單獨調整 Adjustment ofUpper roller: left or right to adjust alone |
||||||
立輥架為滑槽式結構,雙立輥導向,手動調節同時開合和對中;雙立輥導向,手動調節同時開合和對中;立輥滑塊為分體式,用螺釘調節松緊 Vertical roller is sliding-type structure, including: double vertical roller Guide,manually adjust the opening and closing at the same time,vertical roll slideris the split, with screw to adjust tightness |
||||||
矯直裝置(土耳其頭) Straightener(Turkey head) |
作用 Function |
矯直鋼管平直度,引導鋼管正確進入飛鋸,也可對方矩管進行整徑 Straightening steel pipe straightness, lead the steel pipe right into flying saw, can also be rectangular tubes for the whole size |
||||
結構 Structure |
四輥土耳其頭,分別上下、左右調整和旋轉調整 Four-roll Turkey head, up and down, left and right adjustment and rotation adjustment respectively |
|||||
數量 Quantity |
兩架單面土耳其頭 TwoSingle-sided Turkey head |
3.7 電腦飛鋸機
Flying Saw
型式Type |
微機定尺飛鋸 computer length flying saw |
用途 Usage |
確定鋼管定長切斷位置,并能快速起動使切斷設備與作業線速度同步 Determine steel pipe fixed length cutting position, and can quickly start to make the cutting device synchronized with the production line |
維持切斷設備與作業線速度同步,切斷機構動作切斷鋼管 Maintaining cutting device synchronized with the production line, cutting off steel body movements and steel pipe |
|
快速?gòu)?fù)位 Fast reset |
|
控制方法 Control way |
微機控制電機通過減速箱傳動齒輪齒條驅動移動組件 Microcomputer control motor drives mobile component through gear boxgear rack |
切割方式 Cutting way |
熱摩擦鋸切 Friction heat of mental sawing |
鋸車最大運行速度 Maximum running speed of saw |
60米/分鐘 60m/min |
鋸切管徑 Pipe diameter |
圓管round pipeФ63.5-Ф127mm,方管square pipe50X50-100X100mm |
鋸切管壁厚 Pipe thickness |
≤5.0mm |
切割精度 Cutting precision |
±3mm |
定尺長度 Specified length |
4~10m |
鋸片規格 Saw blade |
Φ800×110×5 |
鋸片轉速 Saw blade rotation speed |
2800rpm |
鋸切電機 Cutting motor |
22KW |
跟蹤電機 Tracking motor |
37KW |
氣動系統 Pneumatic system |
0.4~0.7Mpa |
3.8 雙面翻料后輥道架
Double Side Run Out Table
支架結構形式 Support structure |
采用型鋼焊接結構 Using steel welded structure |
輥道架標高Roller rack elevation |
與管件軋制、飛鋸下料中心標高一致 In line withpipe rolling andflying saw cutting center elevation |
托輥形式、材料 Idler roller form and material |
托輥為平輥,材料:45#鋼淬火鍍硬鉻,使用壽命長,不劃傷鋼管 Idler roller is flat roller Material:45# steel quenching hard chrome plated, long service life, don't scratch steel pipe |
托輥運轉動力 Operation power of idler roller |
采用3KW電機拖動,可滿足不同生產速度的需求 Adopt 3kw motor, can meet the needs of different production speed |
翻料方向 Turning direction |
管件前進方向 |
下料方式Blanking way |
兩邊都可下料can be blanking on both side |
四、傳動系統
Transmission system
傳動原理 Principle |
整個機組成型機和定徑機聯動傳動,各系統的主電機通過減速箱、齒輪箱(螺旋傘齒輪傳動)、萬向傳動軸拖動水平輥;立輥為無動力輥。螺旋傘齒輪材質采用20CrMnTi Forming and sizing machines of the entire unit Transmission linkage, the main motors of each system drag horizontal roller through reducer, gear box (spiral bevel gear), universal transmission shaft; vertical roller is unpowered roller. Spiral bevel gear material used 20CrMnTi |
主機機組電機 The host unit motor |
132KW*1 +160KW*1set |
齒輪箱潤滑 Gearbox Lubrication |
稀有浸泡潤滑;箱體外有油位顯示 Rare immersion lubrication; There is oil level outside the enclosure |
額外 Additional |
先將油循環冷卻系統預先準備,現場需要時再增加。 Oil circulating cooling system in advance to prepare first,will add if need when install. |
五、水管分布
Water pipe Distribution
結構 Structure |
整機預留冷卻液總接入口,每段軋輥中間安裝可調金屬冷卻管噴淋頭 Reserve the engine cooling fluid total access, installing adjustable metal cooling spray head in the middle of each roller |
冷卻液流量 Coolant flow rate |
≥25噸ton/小時hour |
六、焊管線主要外購件
Mainly Purchased Components of pipe line.
主電機 Main motor |
國產品牌Domestic brands |
減速機 Reducer |
國產名牌Domestic brands |
飛鋸電源 Flyingsawpower |
進口品牌Imported brands |
汽缸、氣動元件 Cylinder, pneumatic components |
國產品牌Domestic brands |
成型、定徑機組軸承 Bearingof forming and sizing bearing unit |
國產品牌(哈、洛、瓦)Domestic brands |
主要電器元件 Main electric components |
進口品牌Imported brands |
固態高頻 Solid state high frequency |
400KW |
